Transformer Radiator Manufacturer & Cooling Solution Supplier

FAQ - Transformer Cooling Solutions

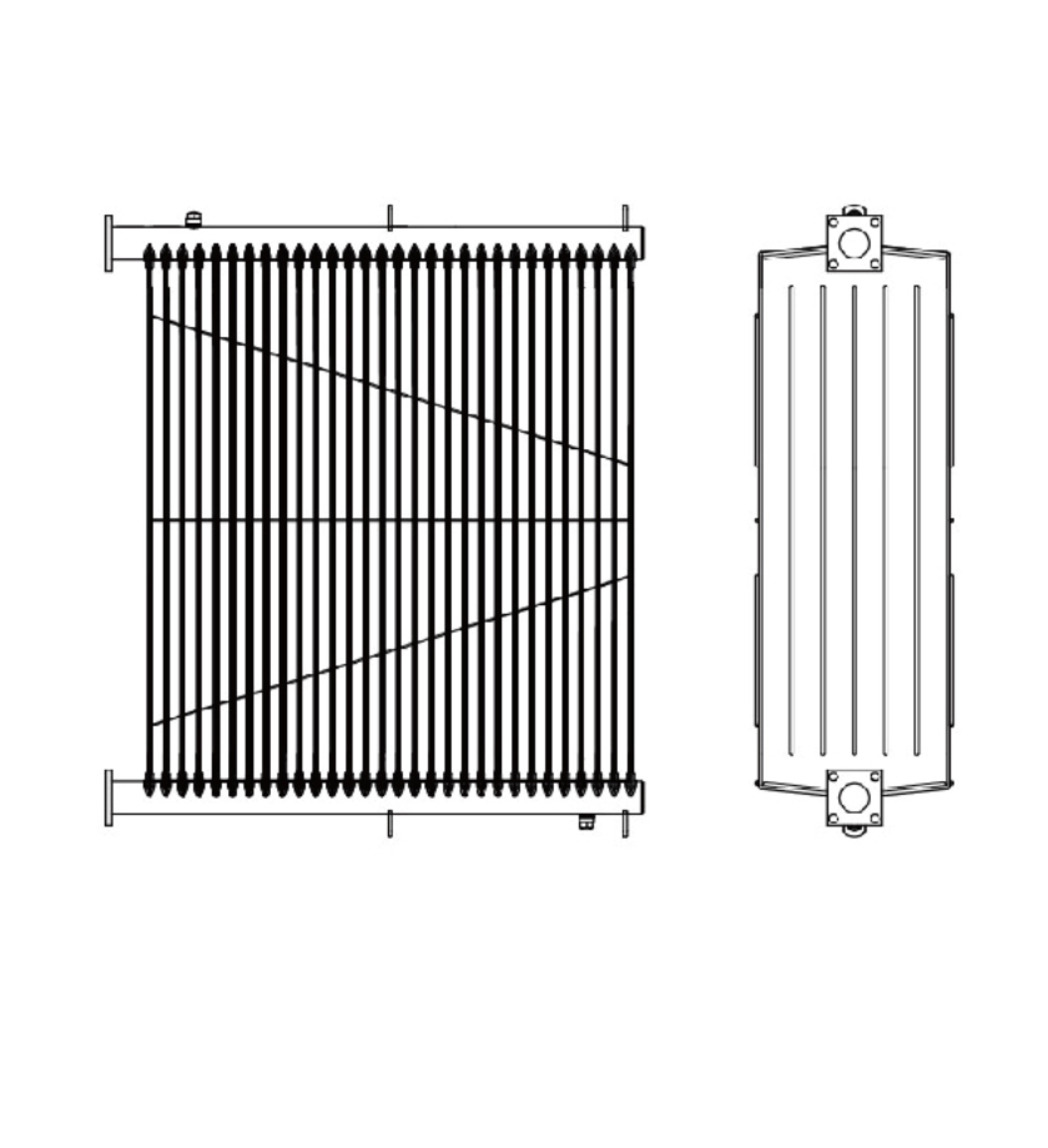

What is a transformer radiator?

A transformer radiator is a cooling device that dissipates heat generated by transformers during operation. It works by circulating hot transformer oil through thin cooling panels or tubes, where heat transfers to the surrounding air. Common types include plate-type (panel) radiators, tube-type radiators, and flange-type radiators. Proper radiator selection is critical for transformer efficiency and longevity.

Do you provide custom solutions?

Yes, we offer comprehensive customization services for transformer radiators. Our engineering team can design radiators based on your specific voltage class (110kV to 550kV+), cooling capacity requirements (ONAN, ONAF, OFAF), dimensional constraints, material preferences (CRS, stainless steel), and connection types (flange, threaded). Typical custom order lead time is 4-8 weeks with full design validation and testing.

Which markets do you serve?

We serve the global power transformer market including Europe, North America, the Middle East, Southeast Asia, Africa, and Oceania. Our products comply with major international standards including IEC 60076, IEEE C57, and GB/T 1094. We have supplied radiators for power grid projects, substations, renewable energy installations, and industrial applications in over 30 countries worldwide.

What materials are used in your transformer radiators?

Our standard transformer radiators are manufactured from high-quality cold-rolled steel (CRS) with anti-corrosion coatings for extended service life. For specialized applications, we offer stainless steel radiators (304 and 316L grades) for corrosive environments, and hot-dip galvanized options for outdoor installations. All materials are sourced from certified suppliers and fully traceable.

What is the typical lifespan of a transformer radiator?

With proper maintenance, a quality transformer radiator typically lasts 20-30 years. Key factors affecting lifespan include operating environment (temperature, humidity, corrosive elements), maintenance frequency (annual inspections, regular cleaning), coating integrity, and operating conditions. Regular maintenance including cleaning, anti-corrosion treatment, and leak inspection can significantly extend radiator service life.

What is your quality control process?

Our quality control process covers the entire production chain: incoming material inspection and certification, in-process dimensional and weld quality checks, 100% pressure testing (both air and oil) for every radiator, surface treatment and coating inspection, and final performance verification before packaging. We maintain ISO 9001:2015 quality management certification and perform batch-level thermal performance testing.
